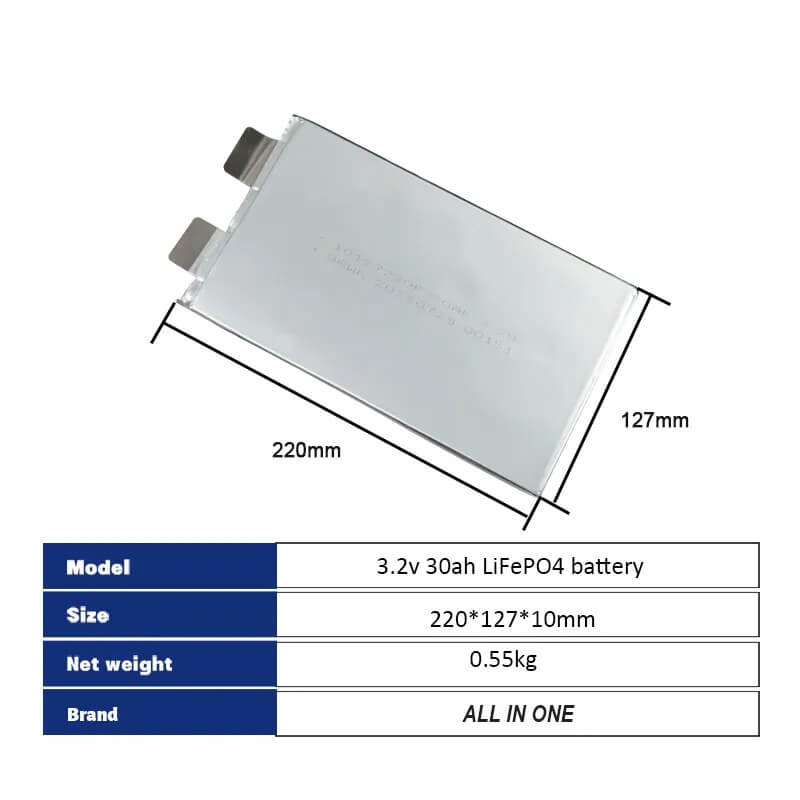

A Grade LiPO Battery Cells 3.2V 30Ah

2025-02-21 03:22

ਨਿਰਧਾਰਨ

ਮਾਡਲ ਨੰਬਰ	3.2v 30ah
ਬੈਟਰੀ ਦੀ ਕਿਸਮ	Lithium ion polymer/lipo battery
ਸਮਰੱਥਾ	30Ah/customize
ਵੋਲਟੇਜ	3.2V
With PCBA/Connector	ਉਪਲੱਬਧ
ਵਾਰੰਟੀ	12 ਮਹੀਨੇ
OEM service	ਉਪਲੱਬਧ
ਪੈਕੇਜ	Industrial bulk tray package
Charging Working Temperature	0℃～60℃
Discharging Working Temperature	-30℃～60℃

ਫੀਚਰ
1.High energy density.
2. Long lifespan.
3. Low internal resistance.
4. Excellent performance in high and low temperature.
5.Good discharge and Charge Performance.

LiFePO4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12V-1000V, 10-1000ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc

ਐਪਲੀਕੇਸ਼ਨ

ALL IN ONE Lifepo4 Battery Cell Catalog
ਬੈਟਰੀ ਕਿਸਮ	ਸਮਰੱਥਾ	ਆਕਾਰ (ਮਿਲੀਮੀਟਰ)	ਭਾਰ (g)	Charge/Discharge rate
Lifepo4 pouch battery	10 ਏਐਚ	9.5*90*150	239	2C/5C
	10 ਏਐਚ	8.0*68*270	266	4C/6C
	20 ਏਐਚ	Hot sale 8.3*142*240	485	1C/1C
	20 ਏਐਚ	6.5*160*227	465g	2C/3C
	20 ਏਐਚ	9.2*126*236	492	1C/3C
	20 ਏਐਚ	8.3*150*170	490	1C/3C
	25AH	8.5*137*232	560	2C/3C
	25AH	9.0*133*200	580g	1C/3C
	30AH	9.0*160*222	665	1C/3C
	30AH	9.2*170*240	690	1C/3C
	38AH	10*160*222	770	2C/3C
	40 ਏਐਚ	8.5*188*236	1kg	1C/1C
	50AH	32*203*173	1.65kg	1C/1C
	50AH	32*173*128	1.35kg	1C/1C
	60AH	60*150*165	1.8kg	1C/1C
	80 ਏਐਚ	60*150*200	2.7kg	1C/1C
	100 ਏਐਚ	60*150*215	3.1kg	1C/1C

ਸਾਡੀ ਫੈਕਟਰੀ



ਪੈਕਿੰਗ ਅਤੇ ਸ਼ਿਪਿੰਗ
